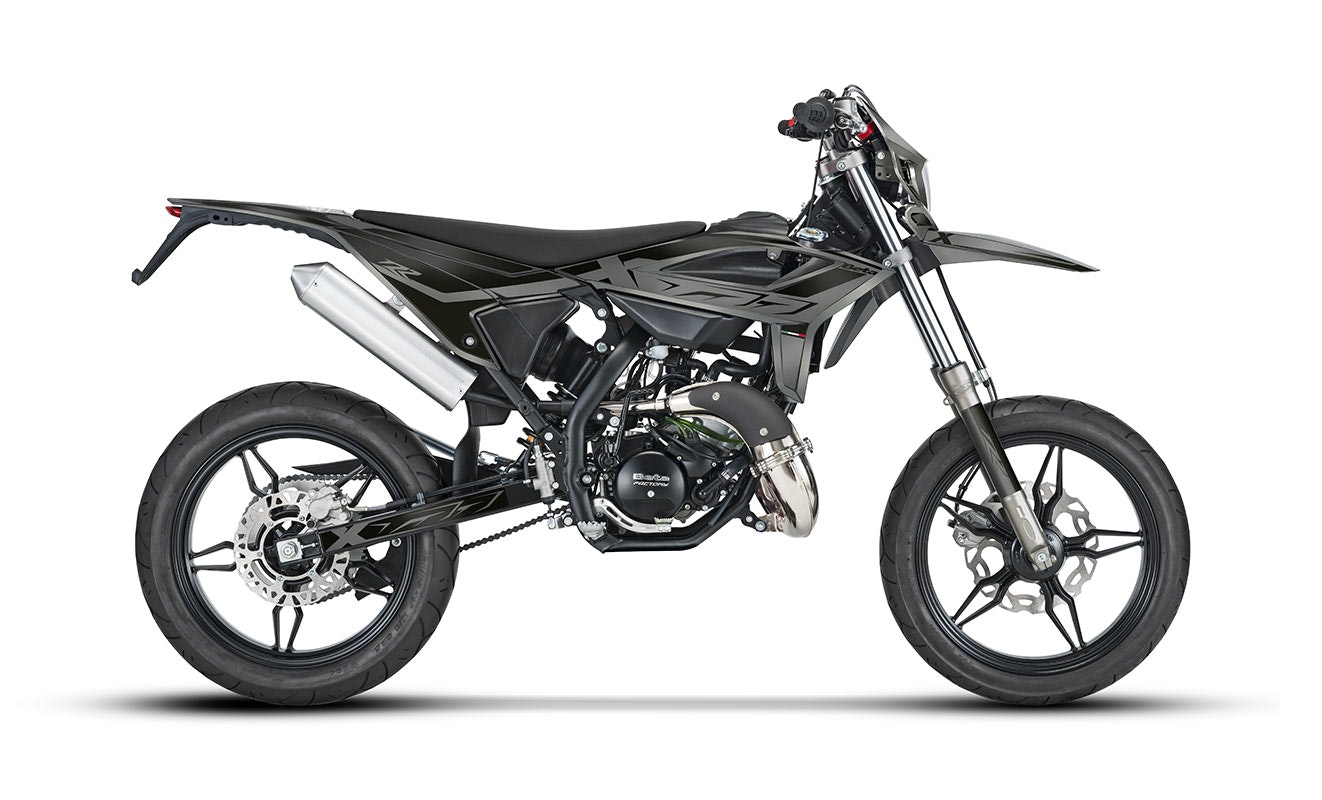

Beta RR 50 MOTARD SPECIAL EDITION X

Här är den! Nya Beta RR50.
Med helt ny design, nytt chassi, och motor.

Beta producerar mopeder, med det lilla extra. Tack vare sin långa erfarenhet inom racing, finner man många likheter mellan Betas mopeder, och deras världsvinnande racinghojar. Både när det kommer till komponenter och design.

TEKNISK INFO MOTOR

TYPE = SINGLE-CYLINDER, 2-STROKE, LIQUID COOLED

BORE = 40,3 MM

STROKE = 39 MM

DISPLACEMENT = 49,7 CC

COMPRESSION RATIO = 12:1

STARTER = KICK

GENERATOR = ELECTRONIC AET 12V – 85W

SPARK PLUG = NGK BR9ES

INTAKE SYSTEM = REED VALVE IN THE ENGINE CASE

LUBRICATION = MIXING WITH MECHANICAL PUMP

FUEL SYSTEM = CARBURETTOR

CLUTCH = WET MULTI-DISC CLUTCH

PRIMARY TRASMISSION = Z.20/71

TRANSMISSION = 6 SPEED

SECONDARY TRASMISSION = CHAIN

ENGINE OIL = SAE 20W/30

CONSUMPTION L/100 KM = 2,41

POLLUTION CO2 [G/KM] = 57

TEKNISK INFO CHASSI

FRAME = STEEL DOUBLE CRADLE FRAME

WHEEL BASE = 1410 MM

MAX LENGTH = 2030 MM

MAX WIDTH = 790 MM

MAX HEIGHT = 1155 MM

SEAT HEIGHT = 885 MM

GROUND CLEARANCE = 280 MM

FOOTREST HEIGHT = 355 MM

DRY WEIGHT = 85 KG

FUEL TANK CAPACITY = 6,5 L

RESERVE = 1,5 L

COOLING SYSTEM CAPACITY = 0,6 L

FRONT SUSPENSION = HYDRAULIC FORK WITH Ø37 MM SHAFT

REAR SUSPENSION = MONOSHOCK

SHOCK ABSORBER STROKE = 50 MM

FRONT WHEEL TRAVEL = 210 MM

REAR WHEEL TRAVEL = 200 MM

FRONT BRAKE = WAVE DISC Ø260 MM

REAR BRAKE = WAVE DISC Ø220 MM

FRONT RIM = 17 X 2.75

REAR RIM = 17 X 3.50

FRONT TYRE = 100/80 – 17

REAR TYRE = 130/70 – 17
